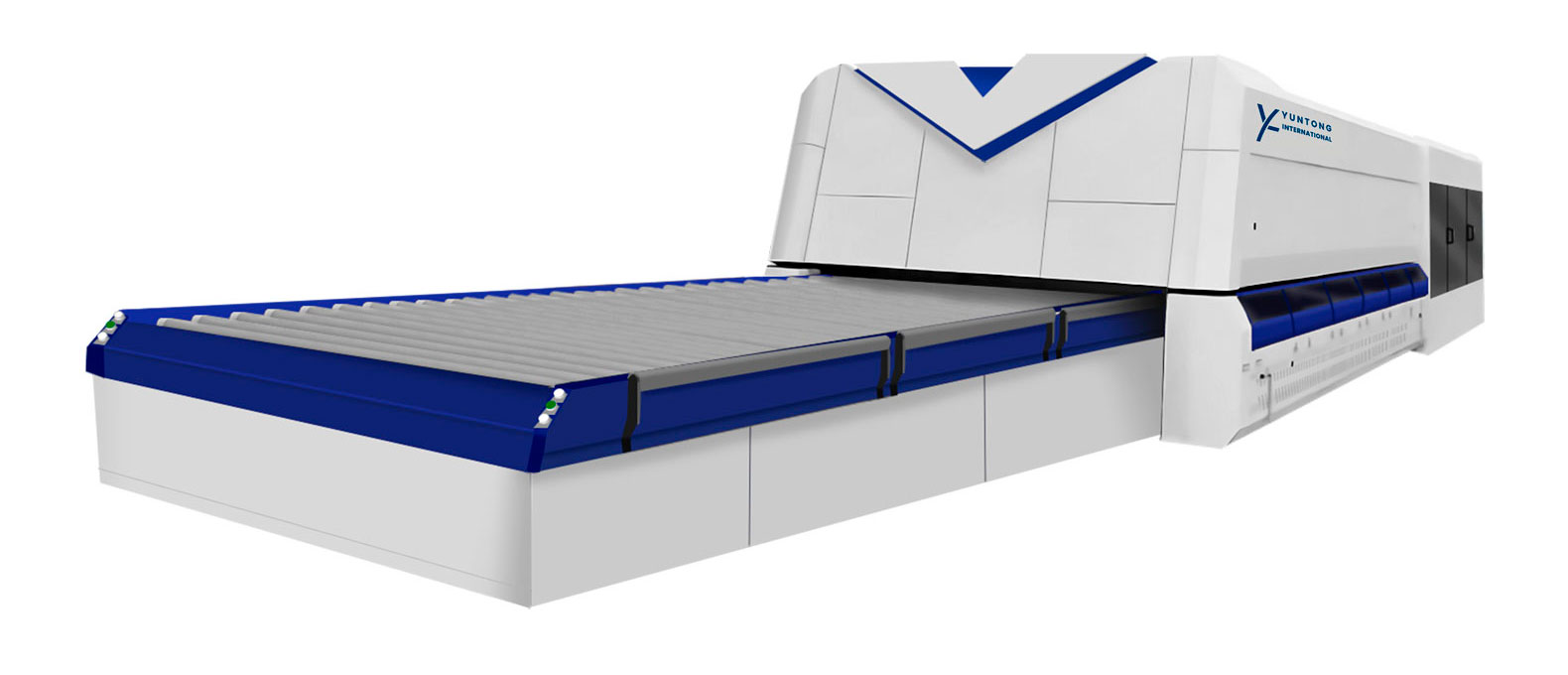

FURNACE YTA2450R5
RADIATION HEATING 5MM – 19MM (3/16 – 3/4)
Max load
W2440mm x L5000mm(96” x 198”)
Min glass size
Dmin 300mm(12”), W ≥ 100mm(4”)
Glass thickness
T = 5mm – 19mm (3/16” – 3/4″)
Rate 1 is the rate to allow homogeneous enough heating, and is regarded as acceptance rate;
Rate 2 is the max rate to test the equipment’s capability.
| Thickness | Batch/hour (Rate 1 / Rate 2) | kwh/sqm ± 10% (LF 85% – 65%) | ||
| mm(inch) | Clear float | HLE | Clear float | HLE |
| 5 (3/16) | 15/17 | 12/14 | 3.4 | 3.6 |
| 6 (1/4) | 10/12 | 8/9 | 3.5 | 3.8 |
| 8 (5/16) | 8/10 | 4.5 | ||
| 10 (3/8) | 6/7.5 | 5.8 | ||
| 12 (15/32) | 5/ 6.5 | 7 | ||
| 15 (3/5) | 4/ 5.5 | 9 | ||
| 19 (3/4) | 3/4 | 12 | ||
