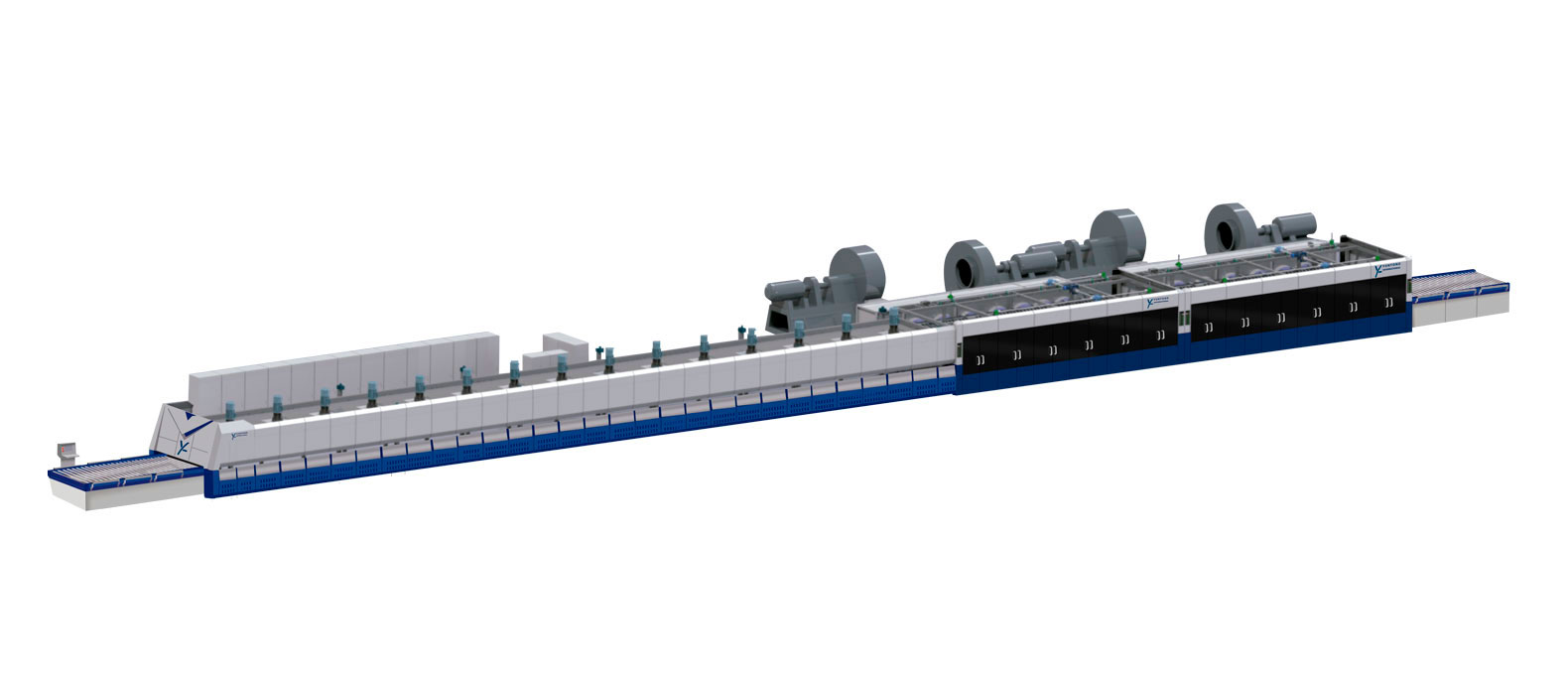

FURNACE YTA1725H25C16D3

CONTINUOUS TEMPERING LINE FOR 1/8″ TO 3/8″ FORCED CONVECTION SETTING FOR LOW-E

Max loading area

W1700mm x L2500mm (67” x 98”)

Min glass size (L*W*D)

14″ * 4″ * 14″

Glass thickness

T = 3mm – 10mm (1/8” – 3/8″)

Charging speed of clear float glass @75% bed load

1/8                                      160mm/s (735m2/h)
5/32                                    115mm/s (528m2/h)
3/16                                    90mm/s (414m2/h)
1/4                                      73mm/s (335m2/h)
5/16                                     54mm/s (248m2/h)
3/8                                        43mm/s (198m2/h)

The production rate of low-e glass may be less than the above figures.

3mm * 20” * 30” clear float glass:

2-3 panels / row
1,800-2,000 panels / hour, or
696 – 774 m2/hour.

Your content goes here. Edit or remove this text inline or in the module Content settings. You can also style every aspect of this content in the module Design settings and even apply custom CSS to this text in the module Advanced settings.

Kwh/100ft tempering clear float glass @75% bed load

1/8                                      :31
5/32                                    :27
3/16                                    :30
1/4                                      :33
5/16                                     :49
3/8                                        :62
